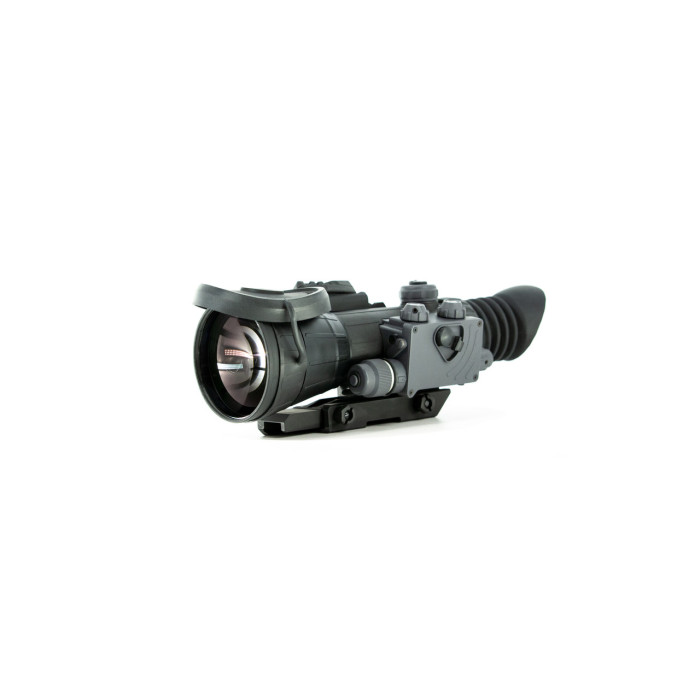

Armasight Vulcan Gen 3 Pinnacle 4.5x Night Vision Riflescope - Minimum 2000 FOM
The Armasight Gen 3 Pinnacle Vulcan 4.5x Compact Professional Night Vision Rifle Scope is a stand-alone, dedicated night vision riflescope that does not require an existing riflescope. The Gen 3 Pinnacle Vulcan comes with your choice of Pinnacle image intensifier tubes with a minimum of 2000FOM, or premium Pinnacle 2376 tubes which are guaranteed to have a minimum of 2376 FOM. All Pinnacle tubes are offered exclusively in Ghost White Phosphor, the preferred choice of elite special operators across the globe.
The Armasight Vulcan 4.5x includes a wireless firearm-mounted remote control – a single push of a button wakes the Armasight Vulcan 4x from standby mode, extending battery life, maintaining light discipline, and reducing movement by the shooter.
The Armasight Vulcan 4.5x can use either a single AA battery, or a single CR123A battery, increasing your options for standardizing your batteries with other gear that you own. The Armasight Vulcan 4.5x features an auto shutoff technology that will power down the unit if it receives no input for 60 minutes as a safeguard in case the unit is left on after use. The unit also protects itself by shutting down if exposed to excessive ambient light and returns to an active state once removed from the light source, preventing damage to the Image Intensifier Tube (IIT). For optimal contrast, the illuminated reticle is independently adjustable for brightness.
This shockproof and waterproof riflescope incorporates multicoated all-glass lenses for superior IR light transmission and is purged and filled with dry nitrogen to prevent fogging. Complete with tactical rails for attaching IR lasers or illuminators, the Armasight Vulcan 4.5x night vision riflescope doesn’t skimp on value or advanced features.
Package Contents
- Vulcan 4.5x Night Vision Riflescope
- Lens Cap
- Eyecup
- IR850-XLR Long Range IR Illuminator
- Wireless Remote Control
- Quick Detach Weaver Mount
- Battery Key
- Product Manual
- Lens Cloth
- Soft Carrying Case
- CR123A battery
- 3 year limited warranty with registration
Specifications
Image Intensifier Tube Generation: Gen 3 Thin-Filmed Manual Gain Control
Resolution (lp/mm): 64-81 lp/mm
Zone 1 Spots Maximum Allowed: No spots of 0.003" or greater allowed
Zone 2 Spots Maximum Allowed: 0 0.009" to 0.012" / 1 0.006" to 0.009" / 2 - 0.003" to 0.006"
Zone 3 Spots Maximum Allowed: 0 0.009" to 0.012" / 2 0.006" to 0.009" / 3 - 0.003" to 0.006"
Manual Gain Control: Yes
Bright Light Cut-off: Yes
Infrared Illuminator: Yes (separate, included)
Remote Control: Yes
Magnification: 4.5x
Lens System: F1.54; 108mm
Field of View (degrees): 9°
Focus Range (m): 15m to infinity
Eye Relief: 45 mm
Exit Pupil: 7 mm
Diopter Adjustment: -4 to +4 dpt
Reticle System: Red on White
Windage and Elevation Adjustments: +/- 45MOA
Power Supply: 1x CR123A (3V) or 1x AA (1.5V) battery
Battery Life (hours): 24 hours (1.5V) / 45 hours (3V) at 20° C
Low Battery Indicator: Yes (in FOV)
Environmental Rating: IP67
Operating Temperature: -40° C to +50° C (-40° F to + 122° F)
Storage Temperature: -51° C to +85° C (-60° F to + 185° F)
Dimensions (mm/in): 297 x 97 x 71mm / 11.7 x 3.8 x 2.8in
Weight (kg/lbs): 1.1kg / 2.4lbs
Warranty: 3 years w/ registration
| Brand | Armasight |
|---|
-
