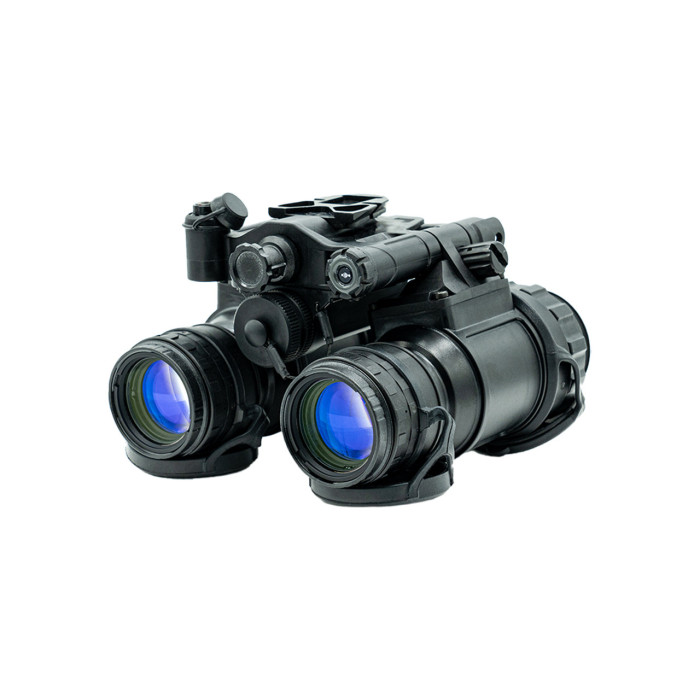

Armasight PVS-31D Gen 3 Pinnacle Elite Night Vision Kit w/ (XL) Helmet
The Armasight PVS-31 with Gen 3 Pinnacle Elite White Phosphor Image Intensifier Tubes are manufactured exclusively for Armasight by Elbit Systems of America as a version of their popular F5032 system, which is part of the US Marine Corps’ Squad Binocular Night Vision Goggles (SBNVG.) These PVS-31 Goggles contain all the key features that make it standout over competing PVS-31 systems, including variable diopters, built-in IR illuminator, and the outstanding and long-lasting performance of Elbit’s thin-filmed image intensifier tubes, which retain their peak performance over usage hours significantly better than competing filmless IIT offerings in testing.
The exclusive Pinnacle Elite Ghost White Phosphor Gen 3 Image Intensifier Tubes powering the Armasight PVS-31 combines extremely high performance with nearly impeccable cosmetics, reducing the allowable blemishes by 50% as compared to Pinnacle® IITs, and providing a flawless Zone 1 picture. These tubes are rated at over 10,000 hours of operation and are battle-tested by some of the most experienced special operation fighting forces in the world. All Armasight PVS-31s come with a Wilcox Industries G24 Breakaway Night Vision Mount included in the package, allowing for the immediate mounting of your PVS-31 to your tactical helmet with a compatible shroud.
Available in both Pinnacle Elite (minimum 2000 FOM) and Pinnacle Elite 2376 (minimum 2376 FOM) configurations.
Comes with (XL) Helmet and Helmet Bag
Package Contents
- PVS-31D Night Vision Goggle
- Wilcox Industries G24 Breakaway Night Vision Mount
- Lens Caps
- Eyecups
- Sacrificial Windows
- Demist Shields
- NVG (Dovetail) Interface Shoe
- Lens Paper
- Soft Carrying Case
- AA Battery
- Product Manual
- Operator's Guide
- 3 year limited warranty with registration
Specifications
Image Intensifier Tube Generation: Gen 3 Thin-Filmed Manual Gain Control
Resolution (lp/mm): 72-81 lp/mm
Zone 1 Spots Maximum Allowed: No spots of 0.003" or greater allowed
Zone 2 Spots Maximum Allowed: No spots of 0.003" or greater allowed
Zone 3 Spots Maximum Allowed: 0 0.009" to 0.012" / 1 0.006" to 0.009" / 1 - 0.003" to 0.006"
Manual Gain Control: Yes
Bright Light Cut-off: Yes
Infrared Illuminator: Yes (Built-in)
IR Indicator: Yes (in FOV)
Magnification: 1x
Lens System: F1.2; 27mm
Field of View (degrees): 40°
Focus Range (m): 0.25m to infinity
Diopter Adjustment: -6 to +2 dpt
Power Supply: 1x AA (1.5V) battery
Battery Life (hours): 24 hours (1.5V)
Low Battery Indicator: Yes (in FOV)
Environmental Rating: IP67
Operating Temperature: -51° C to +49° C (-60° F to + 120° F)
Storage Temperature: -51° C to +85° C (-60° F to + 185° F)
Dimensions (mm/in): 106 x 72 x 104mm / 4.2 x 2.8 x 4.1in
Weight (kg/oz): 0.5kg / 17.63oz
Warranty: 3 years w/ registration
| Brand | Armasight |
|---|
-
