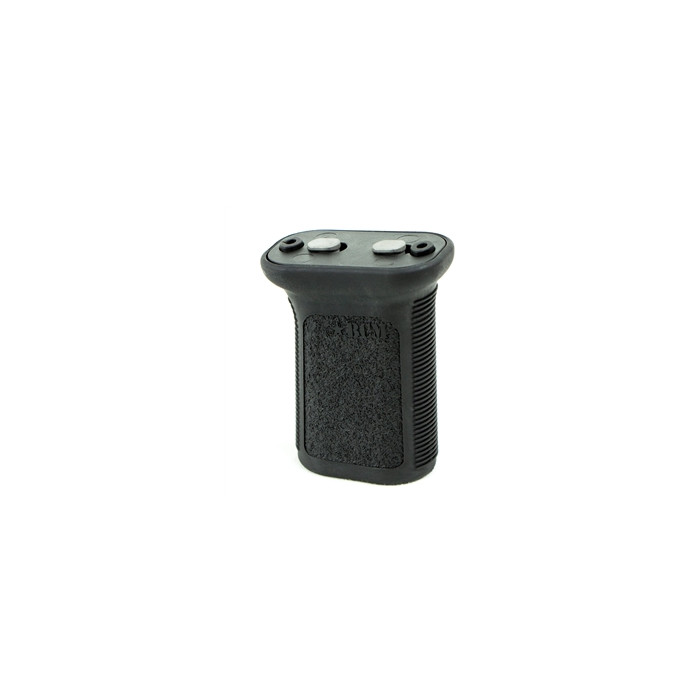

BCM Gunfighter Vertical Grip Mod 3 KeyMod™

Direct Attach to KeyMod™ Version

• Low-profile length for increased mobility and decreased “snag” factor.

• The forward angle increases the rigidity of the forearm, while providing a more natural wrist angle.

• Can be mounted in reverse angle to increase control when grabbing handguard and grip.

• Flat sides with aggressive texture give better yaw control to the shooter during firing and non-firing manipulations.

• Anchor and bolt system offers a simple robust design, while maintaining a lightweight 1.9 ounces.

• Made in the U.S.A., manufactured from high quality, impact resistant polymers.

Tools needed: T15 Torx Driver (not supplied)

• Insert tool (T15 Torx™ driver) into the screw from under the BCM® KeyMod™ Vertical Grip

• Push tool into the screw to extend the KeyMod™ anchor, making it protrude from the top.

• Align the anchors in the two selected large holes of the desired KeyMod™ slots. Grip can be installed in your desired orientation, angled forward or back.

• After the anchor is inserted, slide the BCM® Vertical Grip forward until it travels no further.

• Push the BCM Vertical Grip against rail, engaging the accessory’s recoil lugs to the intersecting KeyMod™ opening.

• With the recoil lugs engaged, tighten the screw to snug the anchor (approximately 40 Inch-lbs. plus quarter turn).

• Ensure there is no wiggle or forward/backward movement once tight.

*Blue thread locker may be used on threaded fasteners
